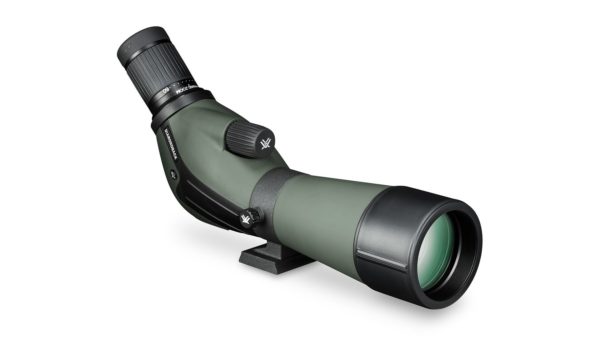

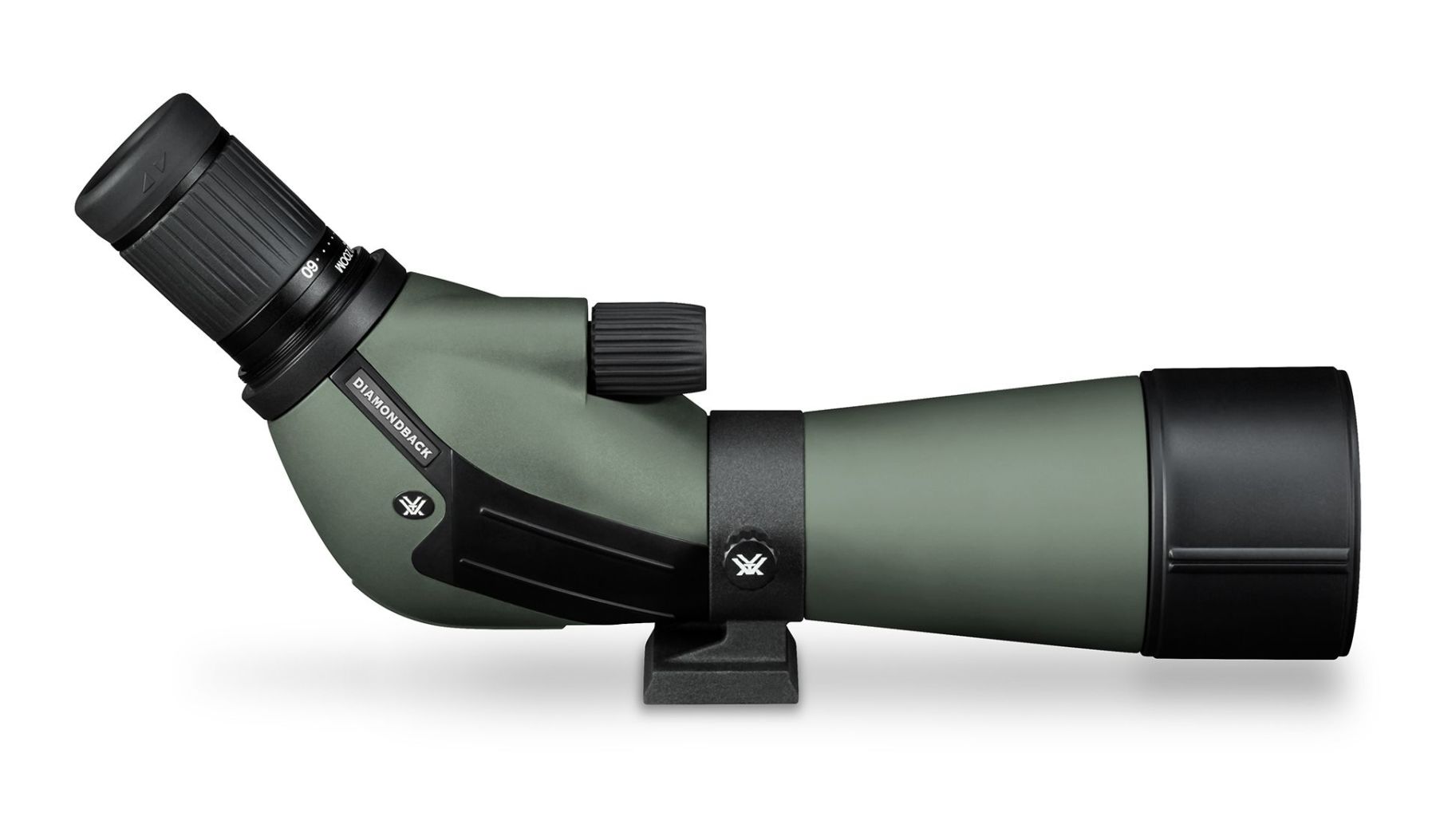

Vortex Diamondback 20-60×60 (Angled) Spotting Scope

Vortex Diamondback 20-60×60 (Angled) Spotting Scope

The Vortex Diamondback 20-60×60 (Angled) Spotting Scope delivers outstanding performance. A superb choice when you need a heavyweight performer in a lightweight, compact package. The Diamondback line ensures a bright, crisp image throughout the magnification range and its rugged construction stands up to rough use in the field.

Included

• Eyepiece cap
• Objective lens cover
• View-through carry case

Overview

• Magnification: 20-60x
• Objective Lens Diameter: 60 mm
• Linear Field of View: 114-51 ft/1000 yds
• Angular Field of View: 2.2-1 degrees
• Close Focus: 20 feet
• Eye Relief: 17-14 mm
• Exit Pupil: 3-1 mm
• Length: 14 inches
• Weight: 33.8 oz
• Model: DBK-60AI
• Product Manual PDF

Features

Optical

• XR™ Fully Multi-Coated: Proprietary coatings increase light transmission with multiple anti-reflective coatings on all air-to-glass surfaces.
• Dielectric Coating: Multi-layer prism coatings provide bright, clear, color-accurate images.

Construction

• Porro Prism: Valued for a rich depth of field, wide field of view, and three-dimensional image.
• Angled Body Design: Valued for allowing an overall lower mounting height which maximizes stability in wind, offers greater comfort when glassing for extended periods, and permits the use of a smaller, lighter tripod.
• Waterproof: O-ring seals prevent moisture, dust and debris from penetrating the binocular for reliable performance in all environments.
• Fogproof: Nitrogen gas purging prevents internal fogging over a wide range of temperatures.

Convenience

• Adjustable Eyecups: Twist up and down for comfortable viewing with or without eyeglasses.
• Built-in sunshade: Reduces glare and shields the objective lens from raindrops and snow.
• Rotating Tripod Ring: Allows rotation of the eyepiece to a sideways position, providing adjustable viewing angles.
